D&B P1200A versterker

→ Snelle levering
→ Webshop 24/7 open
→ De klantenservice is elke werkdag tot 17:00 bereikbaar
→ Binnen 14 dagen gratis retourneren bij een onverhoopt probleem

Omschrijving

Mooie 2x 600W 4 Ohm D&B P1200A versterker.

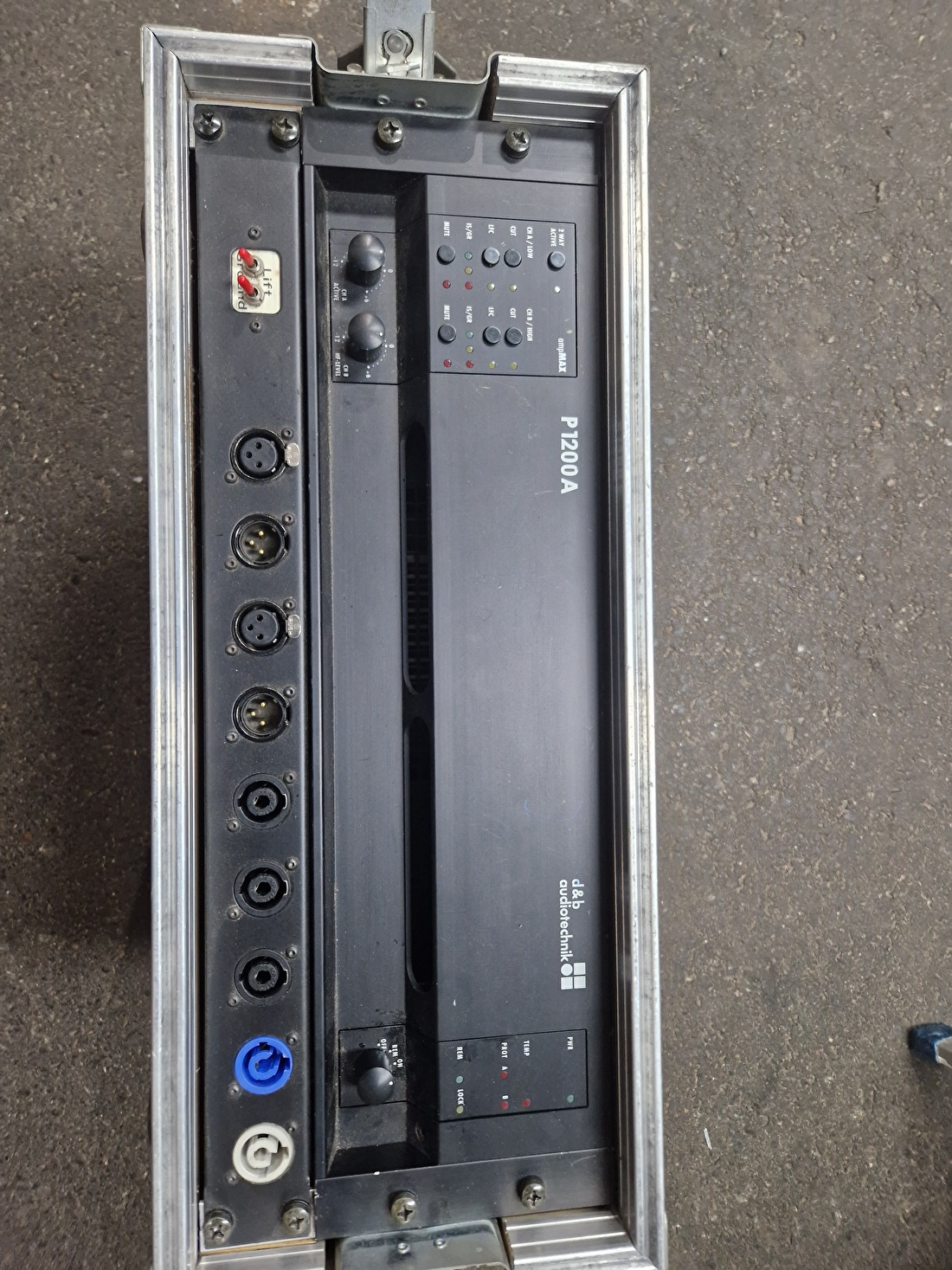

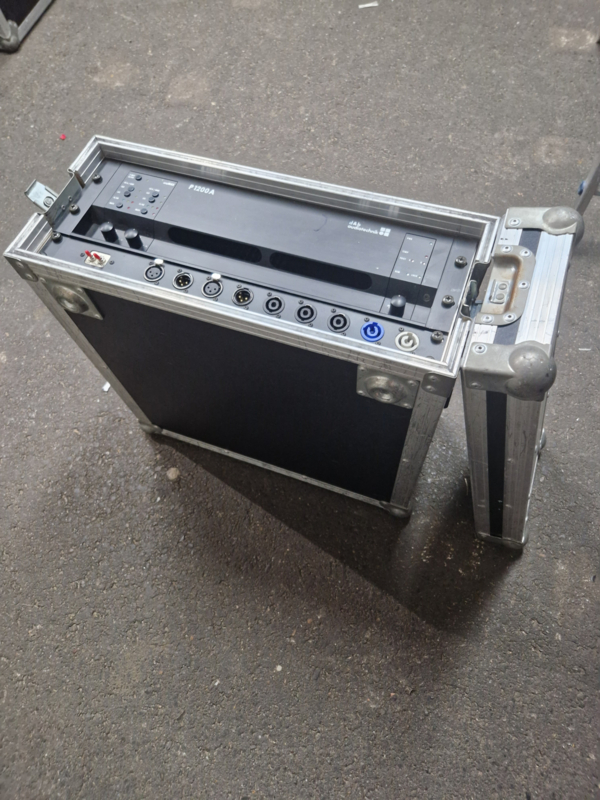

Deze versterker zit in een flightcase met een aansluitpaneel.

Specificaties

• Nominal output power:
• 2 x 400 watts - 8 ohms (THD+N < 0.1%, both channels driven)
• 2 x 600 watts - 4 ohms
• Frequency response (–1 dB): 10 Hz ... 40 kHz measured at rated output power, both channels driven
• Distortion (THD+N): < 0.06 % from 0.1 W to rated output power, 20 Hz ... 20 kHz
• Intermodulation distortion (SMPTE): < 0.03 % from 0.1 W to rated output power
• Residual noise: > 110 dB below rated output power, 22 Hz ... 22 kHz, unweighted, RMS
• Damping factor at loudspeaker output: > 50 20 Hz - 20 kHz, 4 ohms load
• Crosstalk: < –55 dBr

• Protection circuits
• Mains inrush current limiter: 5 A
• Switch-on delay < 2 s
• Overvoltage, DC output, overtemperature and short circuits

• Connections
• Input: XLR 3-pin female
• Pin assignments: 1 = GND, 2 = pos. signal input, 3 = neg. signal input
• Input impedance 44 kohms electronically balanced (transformer balanced optional)
• INPUT LINK: XLR 3-pin male parallel to input
• MONO OUT:
• XLR 3-inl. male
• balanced, minimum output load impedance: 600 ohms
• OUT CHANNEL A/B: Speakon-NL4 (EP-5 optional)
• Pin assignments for full range speakers and passive subs: 1+ / 1– (EP-5: 1/2)
• Pin assignments for active subwoofers: 2+ / 2– (EP-5: 3/4)
• REMOTE CONTROL: DIN 3-pin, 1 = –/ 2 = n.c. / 3 = +

• General
• Height x width x depth:  3 rack unit x 483 mm (19") x 353 mm (13.9")
• Weight with 2 modules fitted: 22 kg (48.5 lbs)
