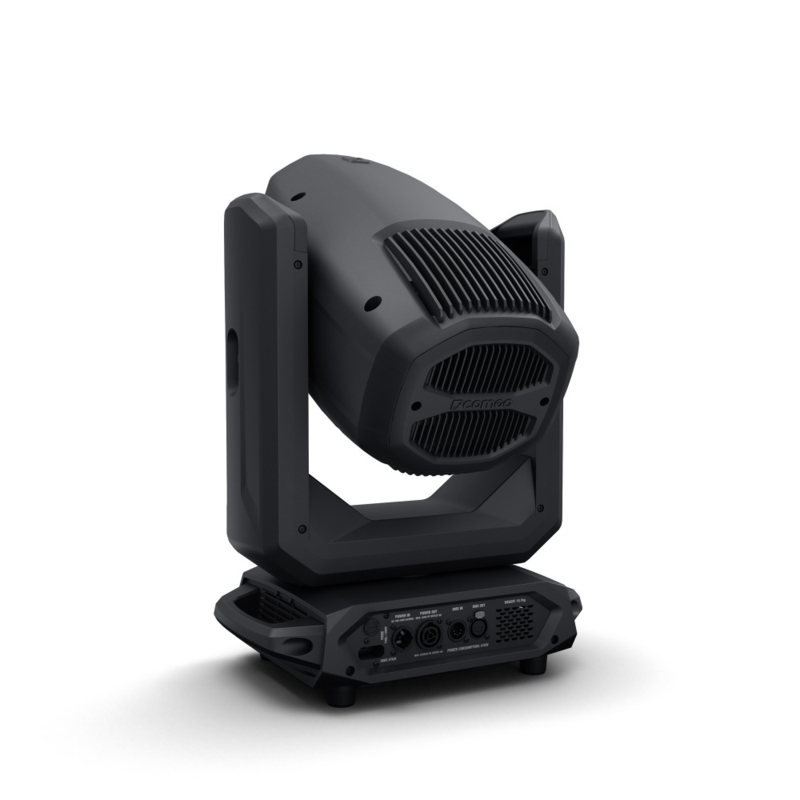

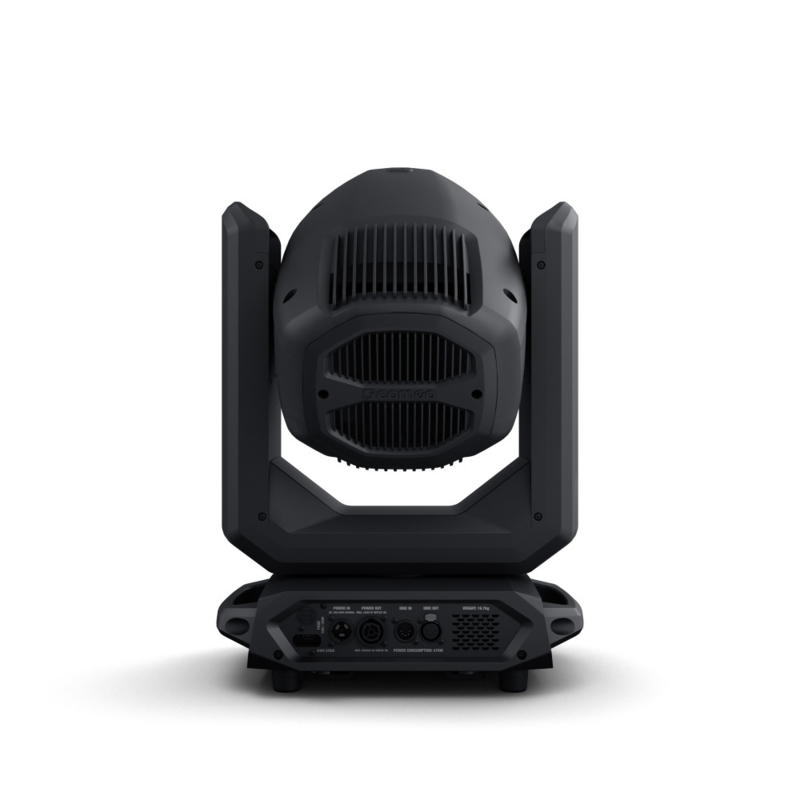

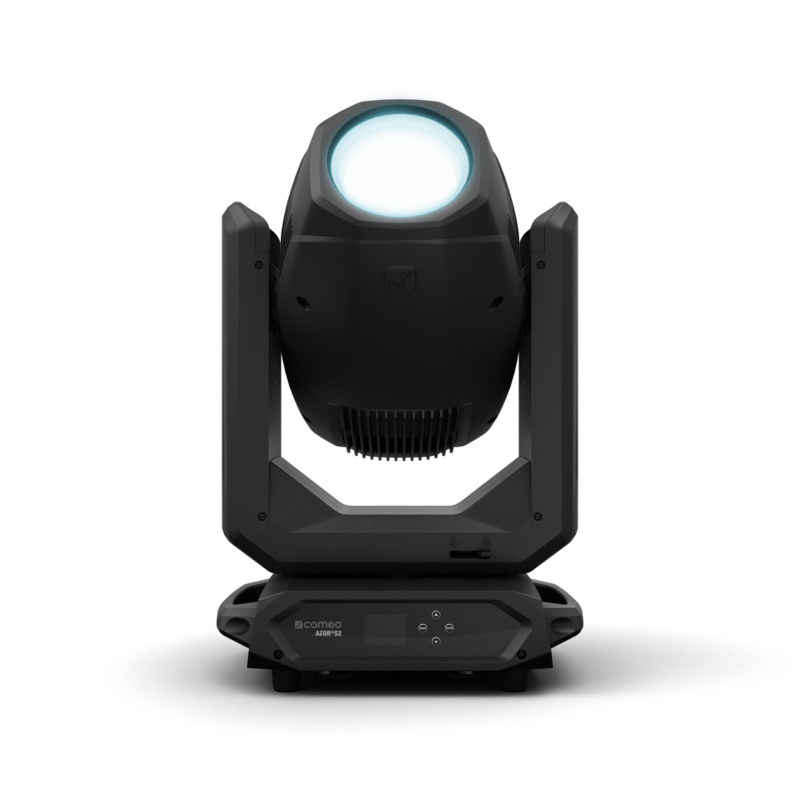

Cameo AZOR® S2

→ Snelle levering
→ Webshop 24/7 open
→ De klantenservice is elke werkdag tot 17:00 bereikbaar
→ Binnen 14 dagen gratis retourneren bij een onverhoopt probleem

Omschrijving

Every year, countless artists, bands, actors and presenters stand on small to medium-sized stages and need light! For all these events, Cameo has developed the AZOR® S2. The compact spot moving head is the ideal partner for lighting designers and event service providers who are looking for a powerful and versatile LED show light that does not lack professional features despite its compact size.

The AZOR® S2 is based on a 300 W LED light source with 13,000 lumens of luminous flux and a wide zoom range of 5°-50° for precise adjustment of the light beam on any stage. The integrated rotating CMY colour mixing system is complemented by an additional colour wheel with 8 dichroic filters to perform lightning-fast colour changes and split colours in conjunction with the 630° pan and 270° tilt movement.

The AZOR® S2 is even more flexible thanks to the two gobo wheels with 8 rotating or 11 static gobos (each plus open). Additional effect options are created by the different prisms, both of which can be rotated and indexed.

Thanks to the adjustable PWM frequency (650 Hz - 25 kHz), the AZOR® S2 is also suitable for use in TV and broadcast applications as well as wherever a camera transmits the action and is dependent on flicker-free LEDs in the picture.

The compact spot moving head can be controlled via DMX512, RDM or wirelessly via W-DMX using the optional Cameo iDMX adapter. On the spotlight itself, buttons and an OLED display provide a convenient basic setup.

Specificaties

General

• Product type

LED Moving Lights

• Type

Spot

• Colour spectrum

Cold white

• Number of LEDs

1

• Color temperature

6800 K

• LED type

300 W

• Colour mixing system

CMY

• Refresh rate

650 - 25000 Hz

• Dispersion

5 - 50 °

• Number of colours

8 + open and stepless colour wheel positioning

• Number of gobos

11 fixed + 8 rotatable & inzable + open

• DMX input

5-Pol XLR

• DMX output

5-Pol XLR

• Protocols

W-DMX (via iDMX Stick + Link)

• Control

DMX512, iDMX Stick compatible, RDM

• DMX mode

21-channel basic, 24-channel standard, 28-channel extended

• DMX Functions

CMY, Colour wheel, Device Settings, Dimmer, Dimmer Fine, Focus, Focus Fine, Frost, Gobo Wheel 1, Gobo wheel 1 rotation, Gobo wheel 1 rotation fine, Gobo Wheel 2, Iris, Pan/Tilt, Pan/Tilt fine, Prism 1/2, Prism Selection, strobe, Zoom, Zoom Fine

• PAN movement

540°, 630°

• TILT movement

270°

• Standalone modes

Master / Slave mode, User Preset 1-4

• Controls

Down, Enter, Mode, Up

• Indicators

Battery supply for mains-independent system settings (automatically rechargeable battery), OLED Display

• Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

• Power consumption

470 W

• Fuse

T4AL 250 V

• Power connector

TRUE1 compatible input and output (max. output current 12A)

• Max. output current

12 A

• Housing material

ABS plastic, Metal

• Cabinet colour

Black

• Protection class IP

IP20

• Cooling

temperature-controlled fan

• Luminous flux

13000 lm

• Maximum Ambient Temperature

0 - 40 °C

• Accessories (included)

2 x omega mounting, Power cord

Dimensions without mounting bracket

• Width

372 mm

• Height

601 mm

• Depth

238 mm

• Weight

19,7 kg
