LD Systems DAVE 12 G4X
Overzicht→ Snelle levering
→ Webshop 24/7 open
→ De klantenservice is elke werkdag tot 17:00 bereikbaar
→ Binnen 14 dagen gratis retourneren bij een onverhoopt probleem
Omschrijving
Whether you're a DJ, a live combo, a solo entertainer or at your next party, you need an all-round PA for everyday live performance that delivers professional sound for a variety of applications. Also on your list of essentials: a wide range of connections and accessory options for fast and flexible on-site setup, and maximum reliability. To put it in a nutshell: your PA has to give its best around the clock.

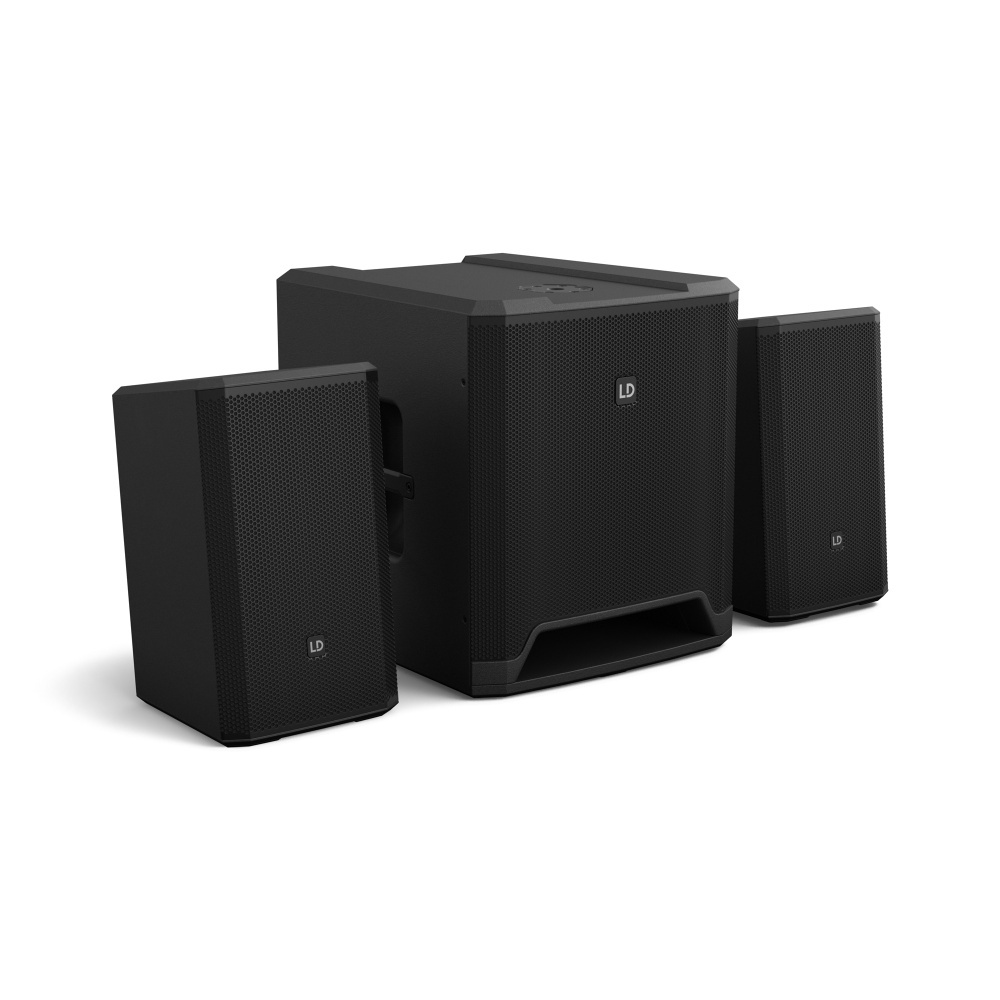

With the DAVE 12 G4X, your search is over. This powered compact PA - which is made up of a 12" subwoofer and two 6.5" satellites (total power: 1460 W peak) - doesn't just deliver a new, modern design with numerous handling optimisations. It also offers an integrated 6-channel mixer with all the important input options you could ever need. This allows you to create a wide variety of setups and combinations of instruments, vocals and audio sources - both wired and wireless - thanks to integrated Bluetooth for easy streaming via a smartphone or tablet.

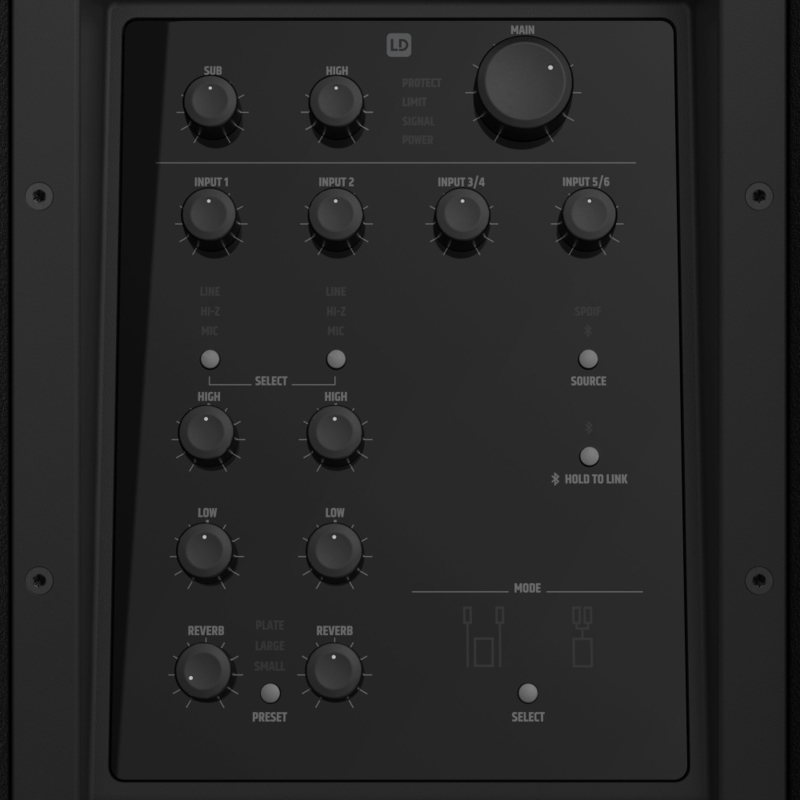

The first two channels of the mixer are designed as channel strips Here, you can connect either a microphone, a high-impedance instrument - such as a guitar and/or bass - or line-level sources. A 2-band EQ for bass and treble, as well as an adjustable reverb with three presets (small, large, plate), are available for shaping the sound further. Channels 3 and 4 are designed as stereo line inputs and are suitable for keyboards, synthesizers, drum machines or small electronic drum kits.
The DAVE 12 G4X becomes even more versatile when you use the digital SPDIF stereo input or the Bluetooth connection to expand your performance setup with a media player, computer or smartphone, with which you can play and control backing tracks, sound effects or music during your breaks. The inputs (channels 5 and 6) can also be used for a karaoke system, or simply to connect a TV device in the sports bar for an impressive sound experience.
Speaking of impressive sound, the DAVE 12 G4X has been completely redesigned and developed from scratch. This not only benefits instruments and music, but also speech intelligibility when the PA is used for speech reinforcement. The acoustic concepts include new compression drivers and waveguides for a homogeneous and directional dispersion, as well as FIR filters and state-of-the-art DSP technology for a transparent, colourless sound that brings the DAVE Series to a whole new level. The subwoofer, for example, is equipped with a larger voice coil and an optimised bass reflex system to reduce air flow noise to a minimum.

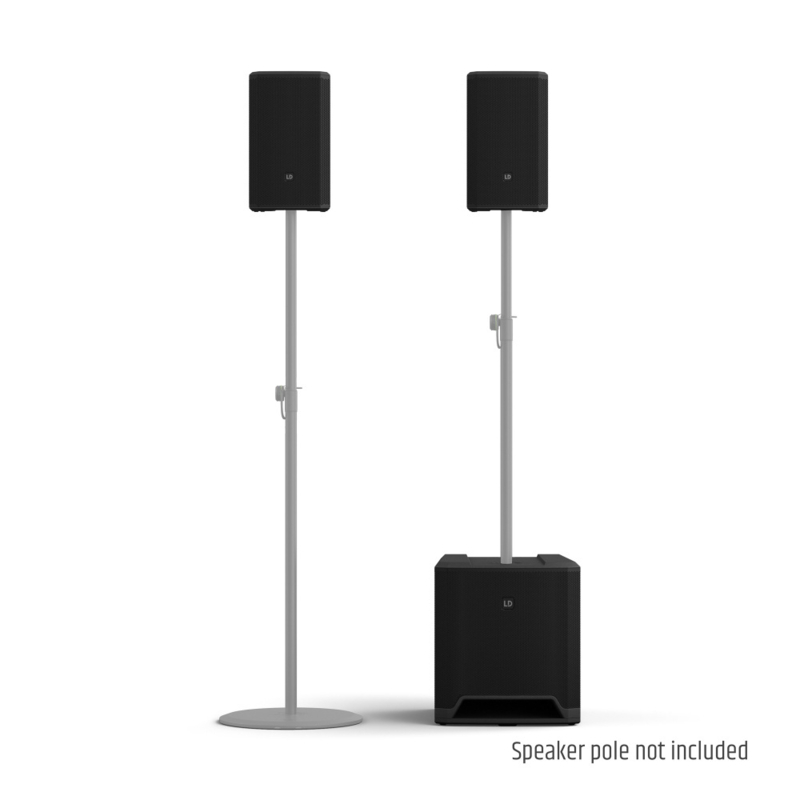

In general, the DAVE 12 G4X is predestined for flexible use. The selectable mode presets (for classic stereo use or set up with two closely spaced satellites on a T-stand above the subwoofer) contribute to this - the DAVE G4X is convincing in terms of sound in all configurations. For example, the Cluster Mode preset allows the interference-free coupling of two satellites by means of a special M/S split and reproduction of the stereo signal for more headroom and directivity.
LD Systems has also thought of all common applications when it comes to accessories. These range from custom-fit bags and a castor board to the T-stand mentioned above.
Specificaties
General
Product type
PA Complete Systems
Type
Powered
Color
Black
System output (RMS)
730 W
System output (Peak)
1460 W
Max. SPL (Avarage)
120 dB
Max. SPL (Peak)
127 dB
Frequency response (-10dB)
37 - 20000 Hz
Crossover frequency
105 Hz
Dispersion (H x V)
90° x 50 °
Weight
43,7 kg
Subwoofer
Low/mid Woofer dimensions
12 "
Woofer dimensions (mm)
304.8 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil
2.5 "
Woofer voice coil (mm)
63 mm
Cabinet construction
Bass Reflex
Cabinet material
15 mm Multiplex, 18 mm Multiplex
Cabinet surface
Polyurea
Subwoofer width
450 mm
Subwoofer height
505 mm
Subwoofer depth
510 mm
Subwoofer weight
27.1 kg
Subwoofer features
3 Reverb presets, 6 channel mixer, Bluetooth, Cluster / Stereo Preset, M20, SPDIF
Carrying handles
2
Mid/Hi System
Midrange dimensions
6.5 "
Midrange dimensions (mm)
165.1 mm
Midrange magnet
Ferrite
Midrange brand
Custom-made
Midrange voice coil
1.5 "
Midrange voice coil
38.6 mm
Horn
CD horn
Tweeter dimensions
0.5 "
Tweeter dimensions (mm)
12.7 mm
Tweeter magnet
Neodymium
Tweeter brand
Custom-made
Tweeter voice coil
1 "
Tweeter voice coil (mm)
25.4 mm
Mid/Hi system impedance
4 Ohm(s)
Mid/Hi system speaker connections
1
Mid/Hi system speaker connections
Speakon compatible
Cabinet construction mid/high
Bass Reflex
Carrying Handles Mid / Hi System
1
Mid/Hi system cabinet material
12 mm Multiplex, 15 mm Multiplex
Mid/Hi system cabinet surface
Polyurea
Mid/Hi system width
252 mm
Mid/Hi system height
435 mm
Mid/Hi system depth
250 mm
Mid/Hi system weight
8.3 kg
Mid/Hi system features
Dual - Tilt flange, Midrange Waveguide
Amplifier module (integrated in subwoofer)
Amplifier
Class D
Amplifier output subwoofer (RMS)
370 W
Amplifier Output Mid/Hi (RMS)
2 x 180 W
Protection circuits
limiter, overload, short circuit
Cooling
Passive
Operating Temperature
0°C - 40 °C
Humidity Range
< 80% (non-condensing)
Controls
Input type, Input volume, Low / High EQ, Main volume, Power, Reverb, Stereo / Cluster mode, Sub / High level
Indicators
Limit, Power, Protect, Signal
Power connector
IEC
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
300 W

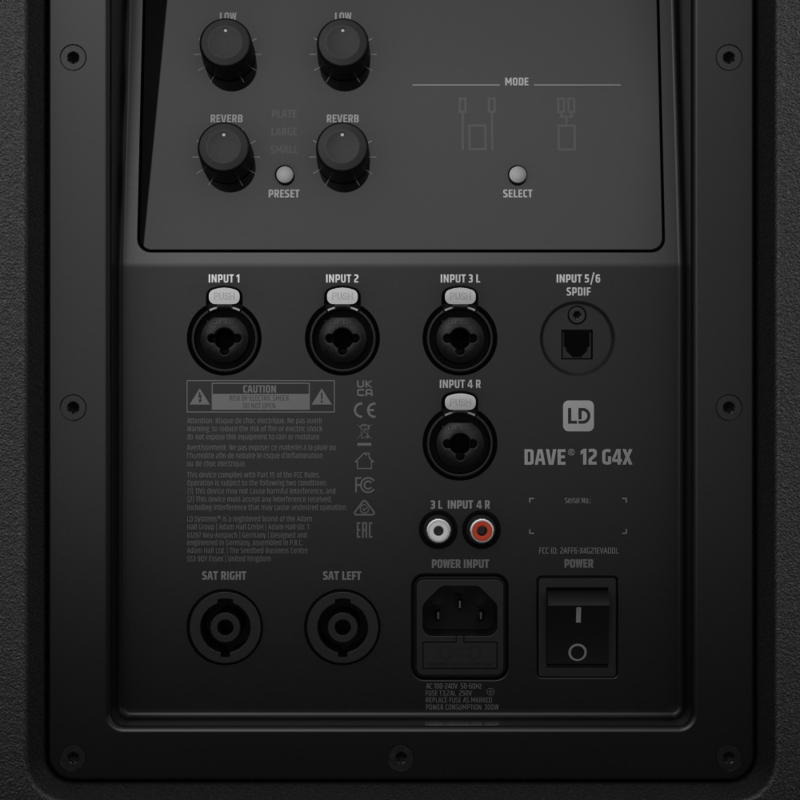

Multi input
2 x switchable (MIC, LINE, HI-Z)
Multi input connector
Combo XLR
Line inputs
2
Line input connectors
Combo XLR, RCA
Digital inputs
2
Digital input connectors
SPDIF
Loudspeaker outputs
2
Speaker output connections
Speakon compatible
Bluetooth Standard
A2DP
Bluetooth Audio Decoder
SBC
Bluetooth version
5.0
